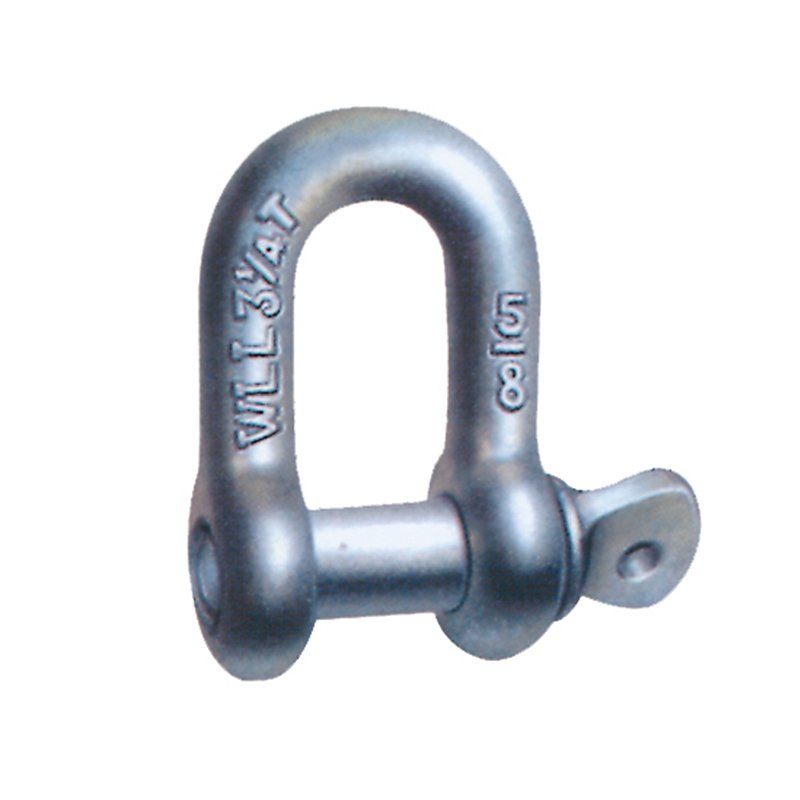

Capacities 1/3 thru 55 metric tons.
Forged-Quenched and Tempered ,with alloy pins.
Working Load Limit permanently shown on every shackle.
Hot Dip galvanized or Self Colored.
Fatigue rated.
Shackles are Quenched and Tempered and can meet DNV impactrequirements of 42 joules at -20 degree C.
| Nominal Size(in.) | Working Load Limit(t) | PART NUMBER | Weight Each(lbs) | Dimensions | Tolerance‘+/- | ||||||||||
| (in.) | |||||||||||||||
| G-210 | A | B | C | D | E | F | G | K | L | M | G | A | |||
| 1/4 | 1/2 | RSCS0104 | 0.11 | 0.47 | 0.31 | 0.25 | 0.25 | 0.97 | 0.62 | 0.97 | 1.59 | 0.19 | 1.43 | 0.06 | 0.06 |
| 5/16 | 3/4 | RSCS0516 | 0.17 | 0.53 | 0.38 | 0.31 | 0.31 | 1.15 | 0.75 | 1.07 | 1.91 | 0.22 | 1.71 | 0.06 | 0.06 |
| 3/8 | 1 | RSCS0308 | 0.28 | 0.66 | 0.44 | 0.38 | 0.38 | 1.42 | 0.92 | 1.28 | 2.31 | 0.25 | 2.02 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | RSCS0716 | 0.43 | 0.75 | 0.5 | 0.44 | 0.44 | 1.63 | 1.06 | 1.48 | 2.67 | 0.31 | 2.37 | 0.13 | 0.06 |
| 1/2 | 2 | RSCS0102 | 0.59 | 0.81 | 0.63 | 0.5 | 0.5 | 1.81 | 1.18 | 1.66 | 3.03 | 0.38 | 2.69 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | RSCS0508 | 1.25 | 1.06 | 0.75 | 0.63 | 0.63 | 2.32 | 1.5 | 2.04 | 3.76 | 0.44 | 3.34 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | RSCS0304 | 2.63 | 1.25 | 0.88 | 0.81 | 0.75 | 2.75 | 1.81 | 2.4 | 4.53 | 0.5 | 3.97 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | RSCS0708 | 3.16 | 1.44 | 1 | 0.97 | 0.88 | 3.2 | 2.1 | 2.86 | 5.33 | 0.5 | 4.5 | 0.25 | 0.06 |
| 1 | 8-1/2 | RSCS1000 | 4.75 | 1.69 | 1.13 | 1 | 1 | 3.69 | 2.38 | 3.24 | 5.94 | 0.56 | 5.13 | 0.25 | 0.06 |
| 1-1/8 | 9-1/2 | RSCS1108 | 6.75 | 1.81 | 1.25 | 1.25 | 1.13 | 4.07 | 2.69 | 3.61 | 6.78 | 0.63 | 5.71 | 0.25 | 0.06 |
| 1/1/4 | 12 | RSCS1104 | 9.06 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3 | 3.97 | 7.5 | 0.69 | 6.25 | 0.25 | 0.13 |
| 1-3/8 | 13-1/2 | RSCS1308 | 11.63 | 2.25 | 1.5 | 1.5 | 1.38 | 5.01 | 3.31 | 4.43 | 8.28 | 0.75 | 6.83 | 0.25 | 0.13 |
| 1-1/2 | 17 | RSCS1102 | 15.95 | 2.38 | 1.63 | 1.62 | 1.5 | 5.38 | 3.62 | 4.84 | 9.05 | 0.81 | 7.33 | 0.25 | 0.13 |
| 1-3/4 | 25 | RSCS1304 | 26.75 | 2.88 | 2 | 2.12 | 1.75 | 6.38 | 4.19 | 5.78 | 10.97 | 1 | 9.06 | 0.25 | 0.13 |
| 2 | 35 | RSCS2000 | 42.31 | 3.25 | 2.25 | 2.36 | 2.1 | 7.25 | 5 | 6.77 | 12.74 | 1.13 | 10.35 | 0.25 | 0.13 |
| 2-1/2 | 55 | RSCS2102 | 71.75 | 4.12 | 2.75 | 2.63 | 2.63 | 9.38 | 5.68 | 8.07 | 14.85 | 1.38 | 13 | 0.25 | 0.25 |
NOTE:Maximum Proof load is 2.0 times the WorkingLoad Limit.Minimum Ultimate Strength is 6 times theWorking Load Limit.
Capacities 1/3 thru 55 metric tons.
Forged-Quenched and Tempered ,with alloy pins.
Working Load Limit permanently shown on every shackle.
·Hot Dip galvanized or Self Colored.
Fatigue rated.
Shackles 25t and larger are RFID EQUIPPEDShackles are Quenched and Tempered and can meet DNV impact requirements of 42 joules at -20 degree C
