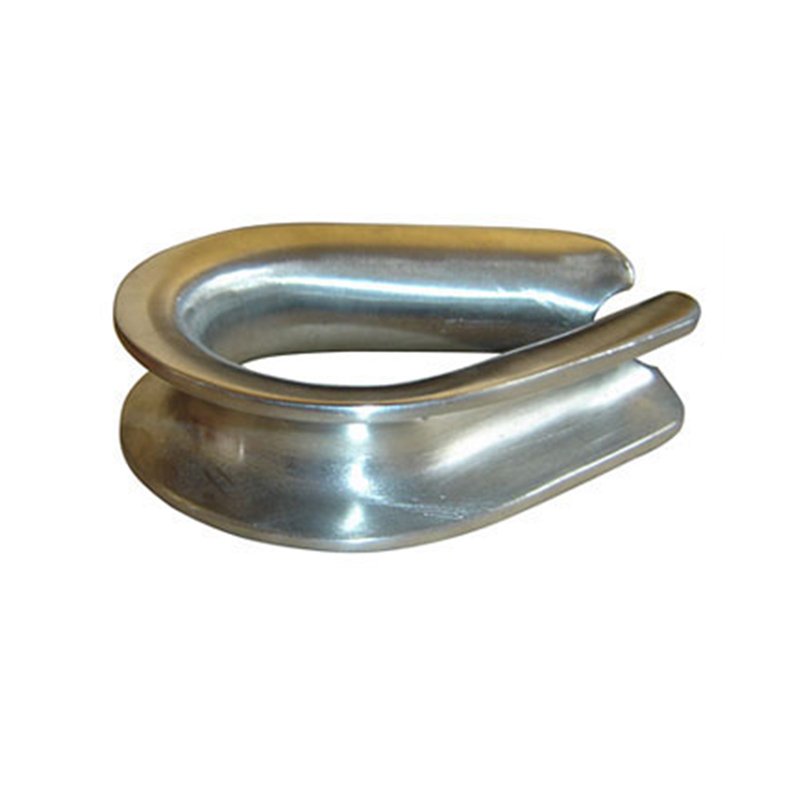

Available in Hot Dip galvanized or Stainless Steel(Type 304).
Stainless steel recommended for more corrosive environments wheregreater protection is required.
Greater protection against wear and deformation of the wire rope eye.
Longer service life.
G-414 meets the performance requirements ofFederal Specification FF-T-276b Type,except forthose provisions required of the contractor.
| PART NO. | ROPE DIA. (inch) | DIMENSIONS (inch) | WEIGHT Per 100 (lbs.) | |||||||
| A | B | C | D | E | F | G | H | |||
| RHDT0104 | *1/4 | 2.19 | 1.62 | 1.50 | 0.88 | 0.41 | 0.28 | 0.06 | 0.25 | 6.50 |
| RHDT0516 | *5/16 | 2.50 | 1.88 | 1.81 | 1.06 | 0.50 | 0.34 | 0.08 | 0.30 | 11.80 |
| RHDT0308 | *3/8 | 2.88 | 2.12 | 2.12 | 1.12 | 0.63 | 0.41 | 0.11 | 0.39 | 21.60 |
| RHDT0716 | 7/16 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.12 | 0.45 | 34.70 |
| RHDT0916 | *1/2-9/16 | 3.62 | 2.75 | 2.75 | 1.50 | 0.89 | 0.59 | 0.15 | 0.48 | 51.00 |
| RHDT0508 | *5/8 | 4.25 | 3.25 | 3.12 | 1.75 | 1.00 | 0.66 | 0.16 | 0.53 | 75.70 |
| RHDT0304 | *3/4 | 5.00 | 3.75 | 3.81 | 2.00 | 1.22 | 0.78 | 0.22 | 0.69 | 158.10 |
| RHDT0708 | 7/8 | 5.50 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.78 | 177.80 |
| RHDT1000 | 1 | 6.12 | 4.50 | 4.75 | 2.50 | 1.56 | 1.06 | 0.25 | 0.88 | 313.90 |
| RHDT1104 | 1-1/8-1-1/4 | 7.00 | 5.12 | 5.88 | 2.88 | 1.88 | 1.31 | 0.25 | 1.25 | 400.00 |
| RHDT1308 | 1-1/4-1-3/8 | 9.08 | 6.50 | 6.81 | 3.50 | 2.25 | 1.44 | 0.37 | 1.29 | 886.00 |
| RHDT1102 | 1-3/8-1-1/2 | 9.00 | 6.25 | 7.12 | 3.50 | 2.62 | 1.56 | 0.50 | 1.31 | 1294.00 |
| RHDT1508 | 1-5/8 | 11.25 | 8.00 | 8.12 | 4.00 | 3.00 | 1.72 | 0.50 | 1.38 | 1700.00 |
| RHDT1304 | 1-3/4 | 12.19 | 9.00 | 8.50 | 4.50 | 3.06 | 1.84 | .50 | 1.50 | 1775.00 |
| RHDT2000 | 1-7/8-2 | 15.12 | 12.00 | 10.38 | 6.00 | 3.38 | 2.09 | .50 | 1.69 | 2775.00 |
| RHDT2104 | 2-1/4 | 17.50 | 14.00 | 11.88 | 7.00 | 3.88 | 2.38 | .62 | 1.82 | 3950.00 |
