The wire rope slings pressed with steel sleeves are manufactured according to theEN13414 standard.
Steel wire rope with diameters from 5mm-130mm can be pressed with steel sleevesand the Minimum Breaking Load is 5 times of Working Load Limited.
All the products can pass the 2 times safety tensile test or breaking load test.Certificate of Quality and Certificate of Tensile Test can be offered.Wire ropes with different structures have diferent working load.
And working loadcan be figured out according to the wire rope structure required.
Part Number |

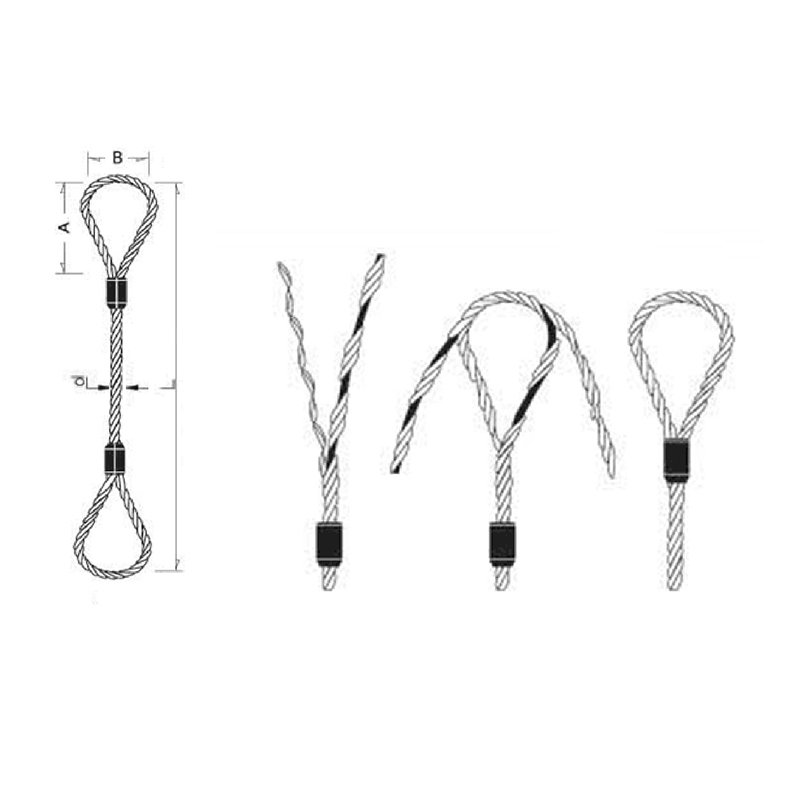

Rope (mm) | Working load limit (tons) | Eye size (mm) | ||||||
vertical | Necklace | Basket hook | |||||||
|
|
|
|
|
|
A |
B | ||
WS030100 | 10 | 1.2 | 0.9 | 2.4 | 2.0 | 1.7 | 1.2 | 200 | 100 |
WS030120 | 12 | 1.8 | 1.4 | 3.6 | 3.1 | 2.5 | 1.8 | 240 | 120 |
WS030140 | 14 | 2.3 | 1.8 | 4.6 | 4.0 | 3.2 | 2.3 | 280 | 140 |
WS030160 | 16 | 3.0 | 2.0 | 6.0 | 5.0 | 4.0 | 3.0 | 320 | 160 |
WS030180 | 18 | 4.0 | 3.0 | 8.0 | 7.0 | 6.0 | 4.0 | 360 | 180 |
WS030200 | 20 | 5.0 | 4.0 | 10.0 | 8.0 | 7.0 | 5.0 | 400 | 200 |
WS030220 | 22 | 6.0 | 5.0 | 12.0 | 10.0 | 8.0 | 6.0 | 440 | 220 |
WS030240 | 24 | 7.0 | 5.0 | 14.0 | 12.0 | 10.0 | 7.0 | 480 | 240 |
WS030260 | 26 | 8.0 | 6.0 | 16.0 | 14.0 | 11.0 | 8.0 | 520 | 260 |
WS030280 | 28 | 9.0 | 7.0 | 18.0 | 16.0 | 13.0 | 9.0 | 560 | 280 |
WS030300 | 30 | 11.0 | 9.0 | 22.0 | 19.0 | 15.0 | 11.0 | 600 | 300 |
WS030320 | 32 | 12.0 | 10.0 | 24.0 | 21.0 | 17.0 | 12.0 | 640 | 320 |
WS030340 | 34 | 14.0 | 11.0 | 28.0 | 24.0 | 19.0 | 14.0 | 680 | 340 |
WS030360 | 36 | 15.0 | 12.0 | 30.0 | 27.0 | 22.0 | 15.0 | 720 | 360 |
WS030380 | 38 | 17.0 | 14.0 | 34.0 | 30.0 | 24.0 | 17.0 | 760 | 380 |
WS030400 | 40 | 19.0 | 15.0 | 38.0 | 33.0 | 27.0 | 19.0 | 800 | 400 |
WS030420 | 42 | 21.0 | 17.0 | 42.0 | 37.0 | 30.0 | 21.0 | 840 | 420 |
WS030450 | 45 | 24.0 | 19.0 | 48.0 | 42.0 | 34.0 | 24.0 | 900 | 450 |
WS030500 | 50 | 30.0 | 24.0 | 60.0 | 52.0 | 42.0 | 30.0 | 1000 | 500 |
WS030520 | 52 | 32.0 | 26.0 | 64.0 | 56.0 | 46.0 | 32.0 | 1040 | 520 |
WS030560 | 56 | 37.0 | 30.0 | 74.0 | 65.0 | 53.0 | 37.0 | 1120 | 560 |
WS030600 | 60 | 43.0 | 34.0 | 86.0 | 75.0 | 61.0 | 43.0 | 1200 | 600 |
WS030650 | 65 | 50.0 | 40.0 | 100.0 | 87.0 | 71.0 | 50.0 | 1300 | 650 |
WS030700 | 70 | 58.0 | 47.0 | 116.0 | 101.0 | 82.0 | 58.0 | 1400 | 700 |
WS030750 | 75 | 67.0 | 53.0 | 134.0 | 116.0 | 95.0 | 67.0 | 1500 | 750 |
WS030800 | 80 | 76.0 | 61.0 | 152.0 | 132.0 | 108.0 | 76.0 | 1600 | 800 |
WS030850 | 85 | 86.0 | 69.0 | 172.0 | 149.0 | 122.0 | 86.0 | 1700 | 850 |
WS030900 | 90 | 96.0 | 77.0 | 192.0 | 167.0 | 137.0 | 96.0 | 1800 | 900 |
WS030950 | 95 | 107.0 | 86.0 | 214.0 | 186.0 | 152.0 | 107.0 | 1900 | 950 |
WS031000 | 100 | 119.0 | 95.0 | 238.0 | 207.0 | 169.0 | 119.0 | 2000 | 1000 |
WS031020 | 102 | 120.0 | 96.0 | 240.0 | 208.0 | 170.0 | 120.0 | 2040 | 1020 |
WS031050 | 105 | 123.0 | 990 | 246.0 | 214.0 | 175.0 | 123.0 | 2100 | 1050 |
