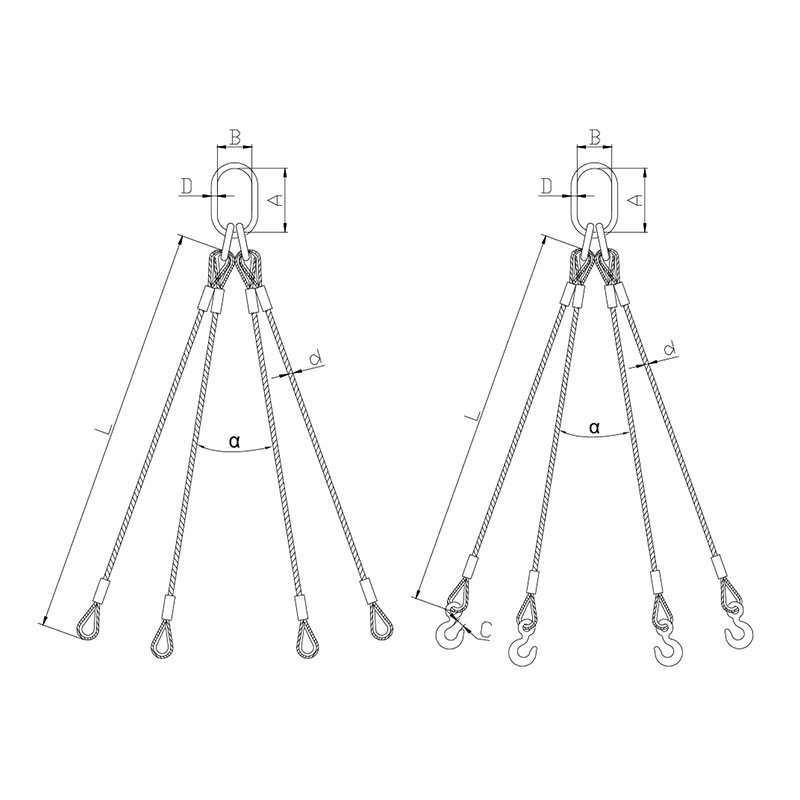

| Part No. | Rope dia. (mm) | Working loac limit (KN) α≤90° | Working loao limit (KN) 90°≤α≤120° | Main loop dimension A×B×D(mm) | Assistantloop dimension A×B×D (mm) | Dimension of hook opening C (mm) | |
| WS330060 | 6.10 | 4.40 | 100x60x14 | 85x40x12 | 24 | ||
| WS330080 | 8 | 10.30 | 7.40 | 100x60x14 | 85x40x12 | 25 | |
| WS330100 | 10 | 16.60 | 11.90 | 100x60x14 | 85x40x12 | 27 | |
| WS330120 | 12 | 24.80 | 17.70 | 160x90x18 | 100x60x14 | 30 | |
| WS330140 | 14 | 33.00 | 23.60 | 160x90x20 | 100x60x14 | 38 | |
| WS330160 | 16 | 45.40 | 32.40 | 180x100x22 | 150x70x18 | 38 | |
| WS330180 | 18 | 55.70 | 39.80 | 180x100x22 | 150x70x18 | 45 | |
| WS330200 | 20 | 68.00 | 48.60 | 270x140x28 | 160x90x22 | 45 | |
| WS330240 | 24 | 102.90 | 73.50 | 270x140x32 | 180x100x25 | 61 | |
| WS330280 | 28 | 144.10 | 102.90 | 260x140x36 | 一 | 66 | |
| WS330320 | 32 | 185.40 | 132.50 | 340x180x45 | 一 | 87 | |
| WS330380 | 38 | 247.00 | 176.60 | 340x180x50 | 一 | 102 | |
| WS330400 | 40 | 278.00 | 199.00 | 340x180x50 | 一 | 102 | |
| WS330440 | 44 | 309.00 | 221.00 | 340x180x50 | 一 | 108 | |
| WS330520 | 52 | 450.00 | 324.00 | 430x220×63 | 一 | 121 | |
| WS330560 | 56 | 540.00 | 386.00 | 460x250x72 | 一 | 146 | |
