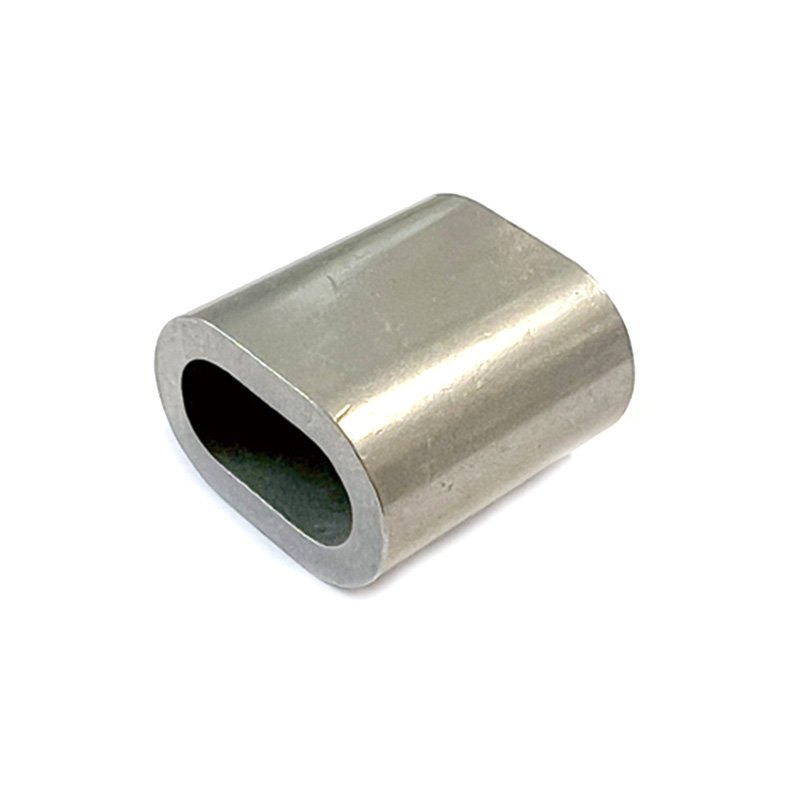

SAFETYLlFT stainless steel ferrules are made from stainless steelBoth SS316 and $S304 are available. The available sizes are from1-30.Special sizes could be custom-made. They have commonuses in marine applications and they are widely used in architecturaldesigns e.g.balustrades and fencing. These ferrules are normallyused on stainless steel wire ropes to achieve the best possibleresistance against corrosion.
Part No. | SIZE(mm) | A(MM) | B(MM) | C(MM) | L(MM) | WEIGHT kgs/1000Pcs |
SL690010 | 1 | 1.2 | 2.4 | 1.0 | 5.0 | 0.372 |
SL690015 | 1.5 | 1.65 | 3.55 | 1.0 | 6.0 | 0.581 |
SL690020 | 2 | 2.4 | 48 | 1.0 | 7.0 | 0.865 |
SL690025 | 2.5 | 2.78 | 5.48 | 0.91 | 9.0 | 1.110 |
SL690030 | 3 | 3.7 | 7.3 | 1.0 | 9.6 | 1.683 |
SL690035 | 3.5 | 3.84 | 7.64 | 1.63 | 11.2 | 3.611 |
SL690040 | 4 | 4.3 | 8.6 | 1.5 | 128 | 4.110 |
SL690045 | 4.5 | 4.9 | 9.8 | 2.0 | 14.4 | 7.233 |
SL690050 | 5 | 6.1 | 12.2 | 2.0 | 16.0 | 9.614 |
SL690060 | 6 | 6.7 | 13.4 | 2.5 | 19.2 | 16.20 |
SL690070 | 7 | 7.9 | 15.9 | 2.5 | 22.4 | 21.75 |
SL690080 | 8 | 9.1 | 18.2 | 3.2 | 25.6 | 37.16 |
SL690090 | 9 | 10.4 | 20.8 | 3.5 | 28.8 | 51.86 |
SL690100 | 10 | 11.5 | 23.0 | 3.91 | 32.0 | 71.30 |
SL690110 | 11 | 12.2 | 24.4 | 4.0 | 35.2 | 84.60 |
SL690120 | 12 | 13.2 | 26.4 | 4.6 | 38.4 | 116.04 |
SL690130 | 13 | 14.3 | 28.6 | 5.0 | 41.6 | 148.11 |
SL690140 | 14 | 15.5 | 31.0 | 5.3 | 44.8 | 182.55 |
SL690160 | 16 | 17.7 | 35.4 | 6.1 | 51.2 | 274.56 |
SL690180 | 18 | 19.9 | 39.8 | 6.9 | 57.6 | 393.3 |
SL690200 | 20 | 22.2 | 44.5 | 7.6 | 64.0 | 536.5 |
SL690220 | 22 | 24.4 | 489 | 8.4 | 70.4 | 717.5 |
SL690240 | 24 | 26.5 | 530 | 9.1 | 76.8 | 919.3 |
SL690260 | 26 | 28.7 | 57.4 | 10.0 | 83.2 | 1188.3 |
SL690280 | 28 | 30.8 | 616 | 108 | 89.6 | 1484.9 |
SL690300 | 30 | 33.0 | 66.0 | 11.5 | 96.0 | 1813.1 |
