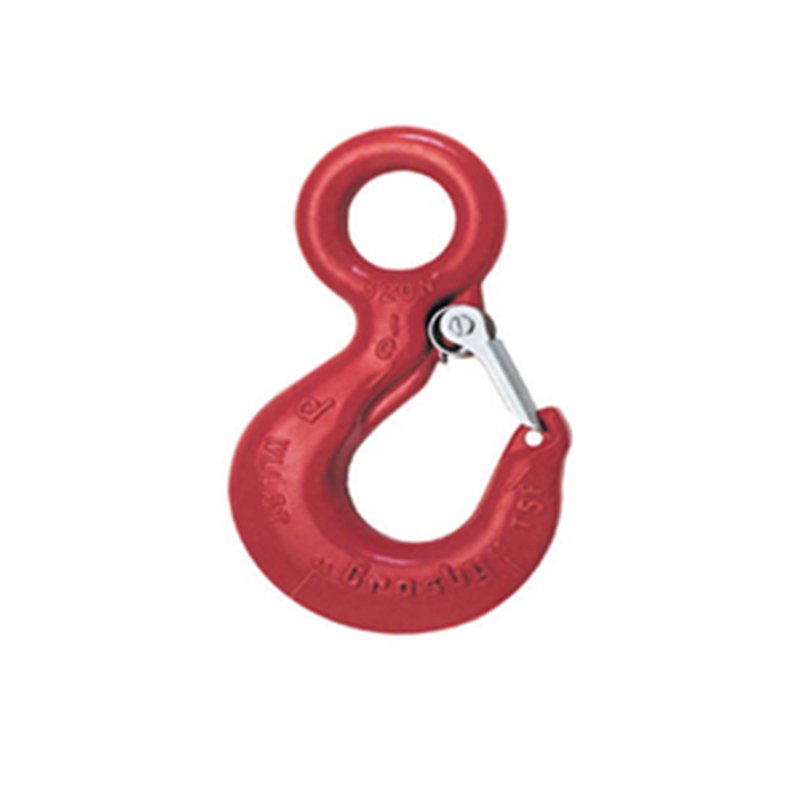

S-320 Eye hooks

Product Categories

S-320 Eye hooks

Available in carbon steel and alloy steel.

Eye hooks are load rated (marked with the Working Load Limit).

Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.

Chemical analysis and tensile tests performed on each PIC to verify chemistry and mechanical properties.

Hooks incorporate QUIC-CHECK^® deformation and angle indicators. (For detailed information, see the Crosby Value Added page at the beginning of this section.)

Inquiry immediately
add to the cart

Product details:

Load (t)		Leptospira	Part Number					Unit weight	Lock pin replacement
Carbon Steel	Alloy	Leptospira	S-320C	L-320C	G-320CN	S-320A	L-320A	(kg.)	S-4320	PL	SS-4055
0.75	1.25	†D	1022200	1022205	1022208	1022375	1022380	0.28	1096325	-	-
1	1.6	†F	1022211	1022216	1022219	1022386	1022391	0.4	1096374	-	-
1.6	2.5	†G	1022222	1022227	1022230	1022397	1022402	0.65	1096421	-	-
2	3.2	†H	1022233	1022238	1022241	1022406	1022413	0.94	1096468	-	-
3.2	5.4	†I	1022244	1022246	1022249	1022419	1022424	1.95	1096515	1092000	-
5	8	†J	1022255	1022260	1022262	1022430	1022435	3.76	1096562	1092001	-
7.5	11.5	†K	1022264	1022271	1022274	1022441	1022446	6.8	1096609	1092002	-
10	16	†L	1022277	1022282	1022285	1022452	1022457	9.42	1096657	1092003	-
15	22	†N	1022288	1022293	1022296	1022465	1022468	17.9	1096704	1092004	-
20	31.5	O	1023289	1022302	-	1023546	1022477	27.2	-	1093716	1090161
25	37	P	1023305	-	-	1023564	-	47.6	-	1093717	1090189
30	45	S	1023323	-	-	1023582	-	67	-	1093718	1090189
40	60	T	1023341	-	-	1023608	-	103	-	1093719	1090205

Hook body number	Size(mm)
Hook body number	C	D	F	G	J	K	M	N	O †	O2 ††	Q	T †	T2 ††	AA**
D	85	72	31.8	18.5	22.9	16	16	9.14	22.6	-	19.1	22.1	-	38.1
F	97	79	35.1	21.3	23.6	18	18	10.7	23.1	-	23.1	24.9	-	50.8
G	105	89.5	38.1	25.4	25.4	22.4	22.4	14	25.4	-	28.7	26.2	-	50.8
H	119	101	41.4	28.7	28.7	23.9	23.8	14.7	27.7	-	31.8	29.5	-	50.8
I	147	122	51	36.6	37.3	33.3	33.3	18.3	34.5	25.4	39.6	38.9	38.1	63.5
J	187	159	63.5	46	44.5	42.2	42.2	22.9	40.9	33.3	51	49.8	47.7	76.2
K	230	189	76	57	58	47.8	41.4	28.2	53	46	62	62.5	57.2	102
L	256	211	82.5	66	63.5	55.5	49.3	32.3	57.5	51	72	66.5	58.7	102
N	318	262	108	76	84	68.5	60.5	39.6	76.5	69.8	89	72	65	127
O	357	346	127	92	102	76	76.2	44.5	82.5	-	89	87.5	-	165
P	462	357	137	116	108	95.2	81	51	76	-	114	98.5	-	178
S	511	392	152	129	121	114	82.6	55.4	86	-	125	121	-	203
T	602	470	178	152	146	140	99.3	64.3	105	-	145	145	-	254

All carbon hooks have a 5:1 Design Factor. Alloy eye hooks 1t through 22t have a 5:1 Design Factor. Alloy eye hooks 30t through 60t have a 4.5:1 Design Factor. For 3/4t carbon through 22t alloy eye hooks, Proof Load is 2.5 times Working Load Limit. For 20t carbon through 60t alloy eye hooks, Proof Load is 2 times Working Load Limit.
