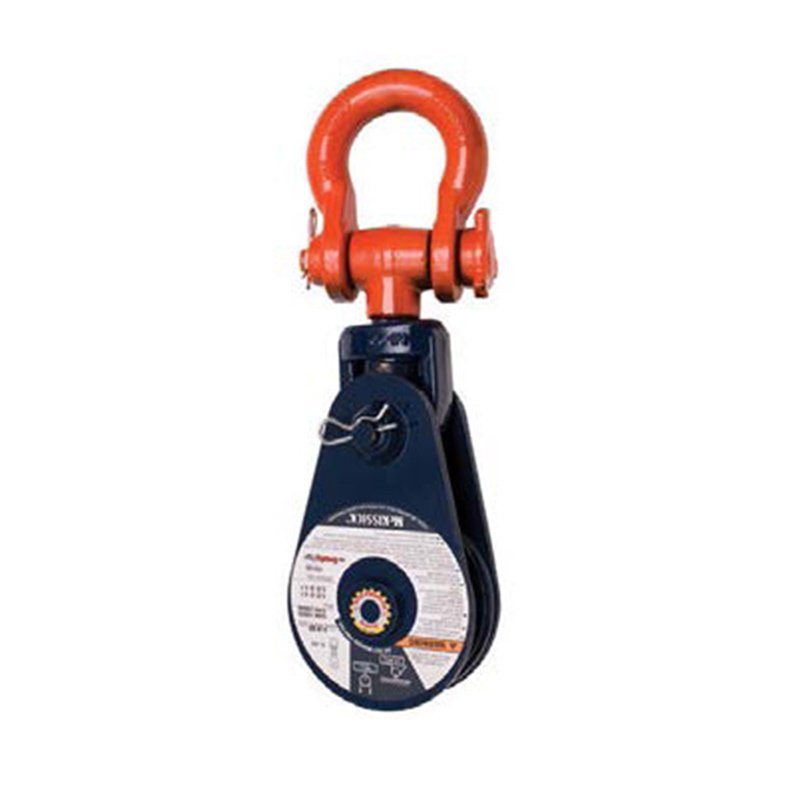

Snatch Block with Shackle

Product Categories

Snatch Block with Shackle

•Forged steel swivel tees, yokes and shackles.

•Available with bronze bushings or roller bearings.

•Split feature allows rope insertion when block is suspended from gantry.

•3” to 18” 419 blocks use special bolt retention springs to ensure no bolt is lost.

•Available with S-4320 hook latch.

Inquiry immediately
add to the cart

Product details:

•Pressure lubricated components.

•3” – 10” have dual rated wire rope sheaves.

•Fatigue rated.

•4-1/2” and larger sizes feature RFID technology.

•Meets or exceeds all ASME B30.26 requirements including identification, ductility, design factor, proof load and temperature requirements. Importantly, these sheaves meet other important performance requirements including fatigue life, impact performance and material traceability requirements beyond those set forth by ASME B30.26.

Pulley		Part Number	Wire Rope	Extreme work	Unit weight (kg)	Replace the pulley	Replacement of closing pin
Diameter		419	Size	Load	419	Replace the pulley	Replacement of closing pin
（mm）	Bearing code	With shackle	（mm）	（ton）*	With shackle	Part Number	Part Number
*3	BB	109091	8-10	2	1.9	460147	—
**3	BB	109037 †	8-10	2	1.81	460147	1096421
**4-1/2	BB	109064	10-13	4	5.44	2000232	1096468
6	BB	109126	16-19	8	12.6	460815	1096562
6	RB	109153	16-19	8	12.6	472688	1096562
8	BB	109224	16-19	8	15.4	461164	1096562
8	RB	109251	16-19	8	15.4	473277	1096562
10	BB	109322	16-19	8	19.1	461805	1096562
10	RB	109359	16-19	8	19.1	473776	1096562
12	BB	202961	16	8	22.2	462270	1096562
12	RB	169347	16	8	22.2	474141	1096562
12	BB	109420	19	8	22.2	462289	1096562
12	RB	109457	19	8	22.2	474150	1096562
14	BB	169356	16	8	25.4	463625	1096562
14	RB	167857	16	8	25.4	474766	1096562
14	BB	109527	19	8	25.4	463634	1096562
14	RB	109545	19	8	25.4	474775	1096562
16	BB	203041	19	15	61	4100056	1096609
16	RB	203087	19	15	61	4200028	1096609
16	BB	109607	22	15	61	4100065	1096609
16	RB	109625	22	15	61	4200037	1096609
18	BB	203130	22	15	70	464571	1096609
18	RB	203176	22	15	70	475792	1096609
18	BB	109643	26	15	70	4104640	1096609
18	RB	109661	26	15	70	6000000	1096609
