S-423T Wedge Sockets

Product Categories

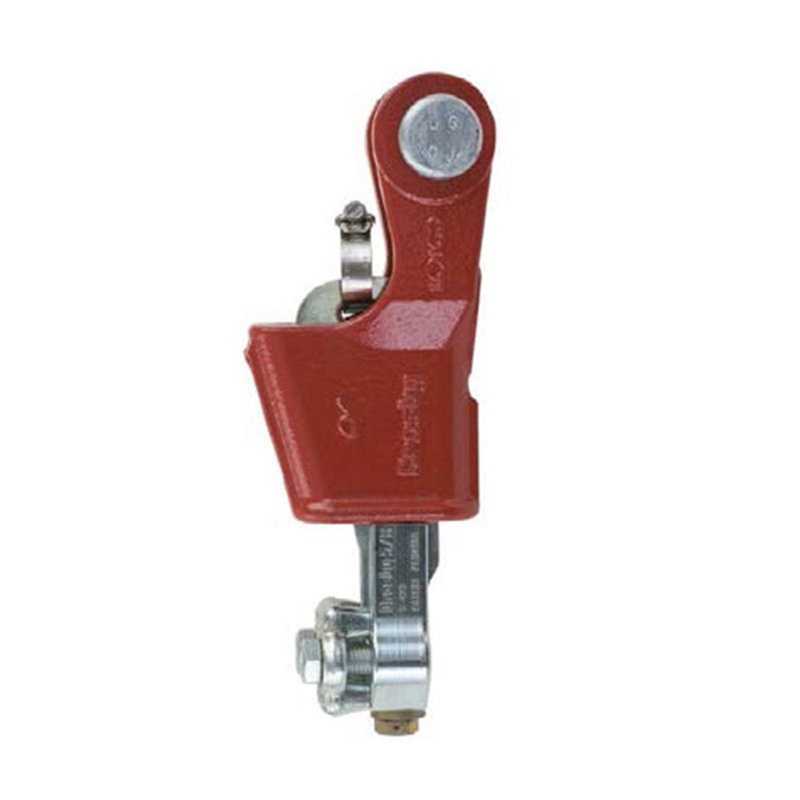

S-423T Wedge Sockets

• The 423T wedge socket terminations have a minimum efficiency rating on most high-performance, high-strength, compacted-strand, rotation-resistant wire ropes of 80% based on the catalog breaking strength of the various ropes.

• Design eliminates the difficulty of properly seating the wedge with high performance wire rope into a wedge socket termination.

• Proper application of the Super Terminator eliminates the 'first load' requirement of conventional wedge socket terminations.

Inquiry immediately
add to the cart

Product details:

• S-423TW Wedge Kit can be retrofitted onto existing Crosby S-421T Terminator Wedge Sockets.

• Wedge and accessories provided with a zinc finish.

• Meets the performance requirements of EN13411-6.

• Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements. Importantly, these sockets meet other critical performance requirements, including fatigue life, impact properties, and material traceability not addressed by ASME B30.26.

• Basket is cast steel and individually magnetic particle inspected.

• Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets.

• Secures the tail or dead end of the wire rope to the wedge, thus eliminates loss or punch out of the wedge.

• Eliminates the need for an extra piece of rope, and is easily installed.

• The Terminator wedge eliminates the potential breaking off of the tail due to fatigue.

• The tail, which is secured by the base of the clip and the tension device, is left undeformed.

• Available with bolt, nut, and cotter pin: S-423TB.

• Available with API-2C certification upon request.

• Wedge sockets meet the performance requirements of Federal Specification RR-S-550F, Type C, except those provisions required of the contractor.

• The S-423T Super Terminator wedge is designed to be assembled only into the Crosby S-421T Terminator socket body. Important: The S-423TW for sizes 5/8" through 1-1/8" will fit respective size standard Crosby S-421T basket. The 1-1/4" S-423TW will only fit the Crosby S-421T 1-1/4" basket marked with Terminator.

Wire rope diameter		S-423T				S-423TB				S-423TW**
inch	Millimeters		API 2C	S-423T			API 2C	S-423TB			S423TW
		S-423T	S-423T	Each weight		S-423TB	S-423T	Each weight		S-423TW	Each weight
		Part Number	Part Number	（Pound）	公斤	Part Number	Part Number	（Pound）	Kilogram	Part Number	（Pound）	公斤
5/8	14- 16	1035123	1035128	12.7	5.8	1035218	1035223	13.1	5.9	1034018	5.2	2.4
3/4	18-19	1035132	1035137	19.4	8.8	1035227	1035232	19.1	8.7	1034027	7.2	3.3
7/8	20-22	1035141	1035146	28.8	13.1	1035236	1035241	27.8	12.6	1034036	10.3	4.7
1	24-26	1035150	1035155	39.2	17.8	1035245	1035250	37.3	16.9	1034045	11.9	5.4
1-1/8	28	1035169	1035174	57.1	25.9	1035254	1035259	57.9	25.9	1034054	19.9	9
1-1/4	30-32	1035178	1035183	88.6	40.2	1035272	1035277	88.1	39.9	1034063	33.8	15.3

Wire rope diameter		S-423T	Dimensions (mm)
Millimeters	inch	Part Number	A	B	C	D	E	F	G	H	J*	L	P	R	S	T	U	V
14-16	5/8	1035123	210	114	31.8	30.2	76.2	103	54.1	117	313	31.0	57.2	14.2	82.6	19.1	175	66.0
18-19	3/4	1035132	251	132	38.1	35.1	82.6	122	62.0	136	373	35.6	66.5	16.8	92.2	22.4	194	76.7
20-22	7/8	1035141	286	149	44.5	41.4	96.8	146	68.3	156	431	42.4	79.5	19.1	109	25.4	241	88.1
24-26	1	1035150	325	167	50.8	50.8	96.8	146	74.7	179	471	51.1	95.3	22.4	119	28.7	264	97.0
28	1-1/8	1035169	365	176	57.2	57.2	102	174	85.9	198	539	57.4	108	25.4	138	31.8	300	107
30-32	1-1/4	1035178	415	219	66.5	63.5	114	197	90.7	238	612	59.4	114	26.9	168	35.1	352	148
