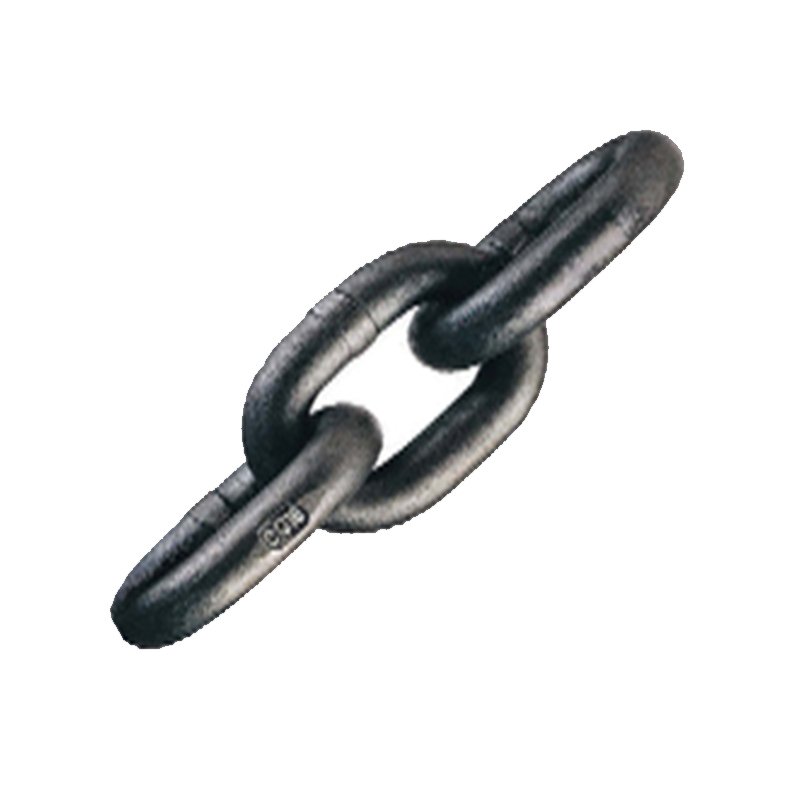

• 25% stronger than Grade 80 alloy chain.
• Permanently embossed with P (Peerless) and 10 (Grade).
• Finish - black paint.
• Meets the latest guidelines of the National Association of Chain Manufacturers (NACM) and ASTM A952/ A952M and ASTM A973/A973M for Grade 10 chain.
• Proof Tested at minimum 2 times the Working Load Limit with certification.
Chain size | 100-level item number | Rice per barrel | Dimensions (mm) | Ultimate working load (tons)* | Unit weight (kg) | |
（inch） | （Millimeters） | |||||
9/32 (1/4) | 7 | 1210055 | 200 | 7 x 21 | 2.00 | 1.05 |
5/16 | 8 | 1210076 | 200 | 8 x 24 | 2.50 | 1.25 |
3/8 | 10 | 1210097 | 200 | 10 x 30 | 4.00 | 2.20 |
1/2 | 13 | 1210118 | 100 | 13 x 39 | 6.70 | 3.80 |
5/8 | 16 | 1210139 | 100 | 16 x 48 | 10.0 | 5.70 |
3/4 | 20 | 1210160 | 75 | 19 x 57 | 14.0 | 8.03 |
7/8 | 23 | 1210202 | 50 | 23 x 69 | 18.8 | 10.9 |
1 | 26 | 1210223 | 25 | 26 x 78 | 26.5 | 15.2 |
Chain size | 100-level item number | Feet/barrel | Material size | Ultimate working load (lbs.)* | Maximum inseam length(in.) | Maximum inner width(in.) | Maximum length of hundred rings (in.) | 100 feet weight (lbs.) |
(inch) | ||||||||
9/32（1/4） | 273710 | 500 | 0.276 | 4300 | 0.87 | 0.42 | 90 | 75 |
5/16 | 273729 | 500 | 0.343 | 5700 | 1.01 | 0.49 | 100 | 113 |
3/8 | 273738 | 500 | 0.394 | 8800 | 1.23 | 0.58 | 125 | 148 |
1/2 | 273747 | 300 | 0.512 | 15000 | 1.57 | 0.77 | 164 | 249 |
5/8 | 273756 | 200 | 0.63 | 22600 | 1.93 | 0.9 | 202 | 378 |
3/4 | 273858 | 100 | 0.787 | 35300 | 2.52 | 0.98 | 252 | 590 |
7/8 | 273867 | 100 | 0.866 | 42700 | 2.77 | 1.08 | 277 | 740 |
1 | 273876 | 75 | 1.02 | 59700 | 3.28 | 1.28 | 328 | 1010 |
