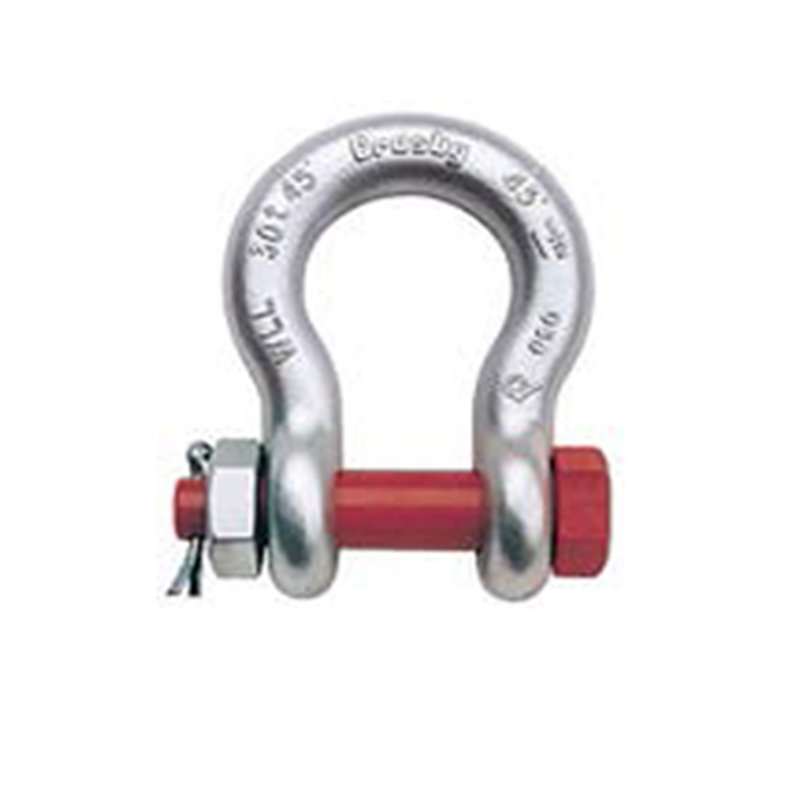

G-2140/S-2140 Alloy Bolt Type Anchor Shackles

• Quenched & Tempered.

• Alloy bows, alloy bolts.

• Forged alloy steel 2 through 250 metric tons. Cast alloy steel 400 metric tons.

• Meets performance requirements of Grade 8 shackles.

• Working Load Limit is permanently shown on every shackle.

• 30, 40, 55, and 85 metric ton shackle bows are available galvanized (G) or self colored (S) with bolts that are galvanized and painted red.

Inquiry immediately
add to the cart

Product details:

• Size 3/8 inch is mechanically galvanized. • 120, 150, 175 metric ton shackle bows are hot-dip galvanized; bolts are Dimetcoted and painted red.

• 200, 250, 300, 400 metric ton shackle bows are Dimetcoted; bolts are Dimetcoted and painted red.

• Approved for use at -40° C (-40° F) to 204° C (400° F).

• Shackles are Quenched & Tempered and can meet DNV impact requirements of 42 Joules (31 ft-lb) at -20° C (-4° F).

• Crosby COLD TUFF® shackles that meet the additional requirements of DNV rules for certification of lifting applications - loose gear are available.

• Shackles 200 metric tons and larger are provided as follows:

• Serialized bolt and bow

• Material certification (chemical)

• Magnetic particle inspected.

• Certification must be requested at time of order.

• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. 2140 shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.

• Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and 2016 ABS Guide for Certification of Lifting Appliances. Certificates are available when requested at time of order and may include additional charges.

• G-2140 meets the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade B, Class 3, except for those provisions required of the contractor. For additional information, see Warnings & Applications.

• Look for the Red Pin®... the mark of genuine Crosby quality.

Specification	Workload	Part Number		Unit weight	Size (mm)
Specification	（T）	G-2140	S-2140	Unit weight	A	B	C	D +/- .5	E	F	G	H	J	K	L
3/8	2	1021015	-	0.15	16.8	23.1	9.7	11.2	36.6	9.7	45.2	55.1	63.2	26.2	9.7
7/16	2 2/3	1021020	-	0.22	19.1	26.9	11.2	12.7	42.9	10.4	51.6	63.8	73.9	29.5	11.2
1/2	3 1/3	1021029	-	0.36	20.6	30.2	12.7	16.3	47.8	11.7	58.7	71.1	83.3	33.3	12.7
5/8	5	1021038	-	0.76	26.9	38.1	17.5	19.6	60.5	14.7	74.7	90.4	106.4	42.9	16
3/4	7	1021047	-	1.23	31.8	46	20.6	22.6	71.4	17.5	88.9	105.4	126.2	50.8	19.1
7/8	9 1/2	1021056	-	1.79	36.6	53.1	24.6	25.9	84.1	20.6	102.4	122.4	148.1	57.9	22.4
	12 1/2	1021065	-	2.57	42.9	60.5	26.9	29.2	95.3	23.4	119.1	136.9	166.6	68.3	25.4
1-1/8	15	1021074	-	3.75	46	68.3	31.8	31.8	108	26.4	131.1	149.9	189.7	73.9	28.7
1-1/4	18	1021083	-	5.31	51.6	76.2	35.1	35.6	119.1	29.5	146.1	169.9	209.6	82.6	32.8
1-3/8	21	1021092	-	7.18	57.2	84.1	38.1	38.9	133.4	32.5	162.1	183.1	232.7	92.2	36.1
1-1/2	30	1021110	1021129	8.52	60.5	91.9	41.1	41.4	146	35.3	175	196	254	98.6	38.9
1-3/4	40	1021138	1021147	15.4	73.2	106	57.2	50.8	178	44.5	224	237	313	127	46.7
2	55	1021156	1021165	23.6	82.6	122	61	57.2	197	50.8	258	264	347	146	52.8
2-1/2	85	1021174	1021183	43.5	105	148	79.2	69.9	267	66.5	324	345	455	184	68.8
3	120	1021192	–	81	127	165	92.2	82.6	330	76.2	371	384	546	200	79.2
3-1/2	† 150	1021218	–	120	133	203	111	95.3	372	95.3	432	448	632	229	91.9
4	† 175	1021236	–	153	140	229	116	108	368	102	457	517	652	254	102
4-3/4	† 200	1021234	–	209	184	267	127	121	386	116	529	611	706	279	121
5	† 250	1021443	–	276	216	305	143	127	470	123	600	632	828	330	127
6	† 300	1021252	–	362	213	330	154	152	475	124	629	666	871	330	149
7	† 400	1021478	–	500	210	356	184	178	572	165	660	728	1022	330	152

* Maximum proof load is 2.0 times the Ultimate Working Load.

For sizes from 2 to 21 metric tons, the minimum ultimate load is 4.5 times the Ultimate Working Load.

For sizes from 30 to 175 metric tons, the minimum ultimate load is 5.4 times the Ultimate Working Load.

For sizes from 200 to 400 metric tons, the minimum ultimate load is 4 times the Ultimate Working Load.
