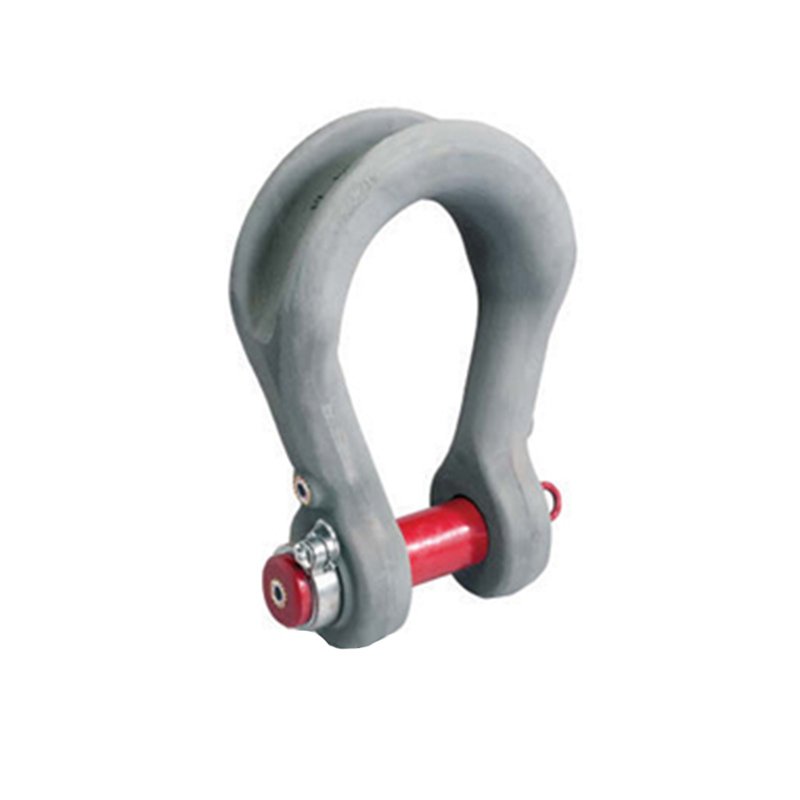

G-2160/S-2160 Wide Body Shackles

• Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble.

• Increases usable sling strength a minimum of 15% and greatly improves life of wire rope slings.

• Can be used to connect synthetic web slings, synthetic round slings or wire rope slings.

• All sizes Quenched & Tempered for maximum strength.

• Forged alloy steel from 7 through 300 metric tons.

• Cast alloy steel from 400 through 1550 metric tons.

Inquiry immediately
add to the cart

Product details:

• Proof tested as follows:

• 7 through 75 metric tons and 200 through 300 metric tons: 2 x WLL

• 125 metric tons: 1.6 x WLL

• 400 metric tons and higher: 1.33 x WLL

• All ratings are in metric tons, embossed on side of bow.

• G-2160, (7 through 55t), are hot-dip galvanized and pins are painted red.

• G-2160 (75t and larger), bows are furnished Dimetcoted; Pins are Dimetcoted, then painted red.

• S-2160 bows and pins are painted red.

• Approved for use at -40° C (-40° F) to 204° C (400° F).

• Bow and bolt are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -20° C (-4° F).

• All 2160 shackles are individually proof tested and magnetic particle inspected. Crosby certification available at time of order.

• Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order.

• Type approved and certification to DNV Rules for Certification of Lifting Appliances, and are produced in accordance with DNV MSA requirements. Databook is provided that includes required documents.

• Serialization / Identification

• Material Testing (physical / chemical / Charpy)

• Proof Testing

• Look for the Red Pin®... the mark of genuine Crosby quality

Workload	Part Number		Unit weight	Size (mm)
(t)	G-2160	S-2160	(kg)	A	B +/- 6.35	C	D +/- .5	E	G	H	J	K	M	N	P	R	有效弓体直径
7	1021256	1021548	1.81	105	31.8	17.5	22.4	46.2	31.8	90.4	40.6	31.8	–	–	104	149	53.3
12.5	1021265	1021557	4.54	137	42.9	23.4	28.7	60.5	34.8	118	54.1	41.4	–	–	140	194	61
18	1021274	1021566	6.8	170	51.6	29.5	35.1	68.3	38.1	148	63.5	50.8	–	–	172	238	71.1
30	1021283	1021575	11.34	195	60.2	35.1	41.4	88.9	63.5	176	79.5	63.5	–	–	216	289	104
40	1021285	1021584	20.9	236	73.2	42.9	50.8	102	44.4	205	95.3	76.2	–	–	270	346	91.4
55	1021287	1021593	32.21	263	82.6	50.8	57.2	118	66.8	238	114	88.9	–	–	311	397	109
75	1022101	–	51	365	105	53.8	69.9	127	89	404	121	92.5	102	45.7	312	468	125
125	1022110	–	87	465	130	67.6	80	165	95.3	465	150	110	102	45.7	393	584	173
200	1022118	–	191	538	150	74.7	105	214	133	538	219	138	102	45.7	515	773	241
300	1022127	–	365	615	187	97.5	133	267	156	615	264	160	102	45.7	608	957	290
400	1021334	–	518	772	220	131	160	320	203	729	320	185	102	45.7	690	985	363
500	1021343	–	653	849	250	146	180	340	205	793	340	225	102	45.7	790	1085	376
600	1021352	–	967	916	275	158	200	394	330	898	370	247	146	57.2	865	1200	516
700	1021361	–	1170	990	300	167	215	433	223	953	400	270	146	57.2	940	1275	422
800	1021254	–	1372	1059	325	185	230	449	248	1013	420	277	146	57.2	975	1323	457
900	1021389	–	1712	1112	350	198	250	478	330	1072	440	293	146	57.2	1025	1387	569
1000	1021370	–	1850	1169	380	212	270	508	261	1125	460	308	146	57.2	1075	1405	490
1250	1021272	–	2588	1278	432	233	300	573	354	1006	530	323	–	–	1175	1660	620
1550	1021281	–	3650	1588	465	282	320	616	318	1075	580	338	–	–	1316	1896	693

* The proof load of 7 tons to 300 tons is 2 times the ultimate working load. The ultimate load is 5 times the ultimate working load. The proof load of 400 tons to 1550 tons is 1.33 times the ultimate working load. The ultimate load is 4.5 times the ultimate working load.
