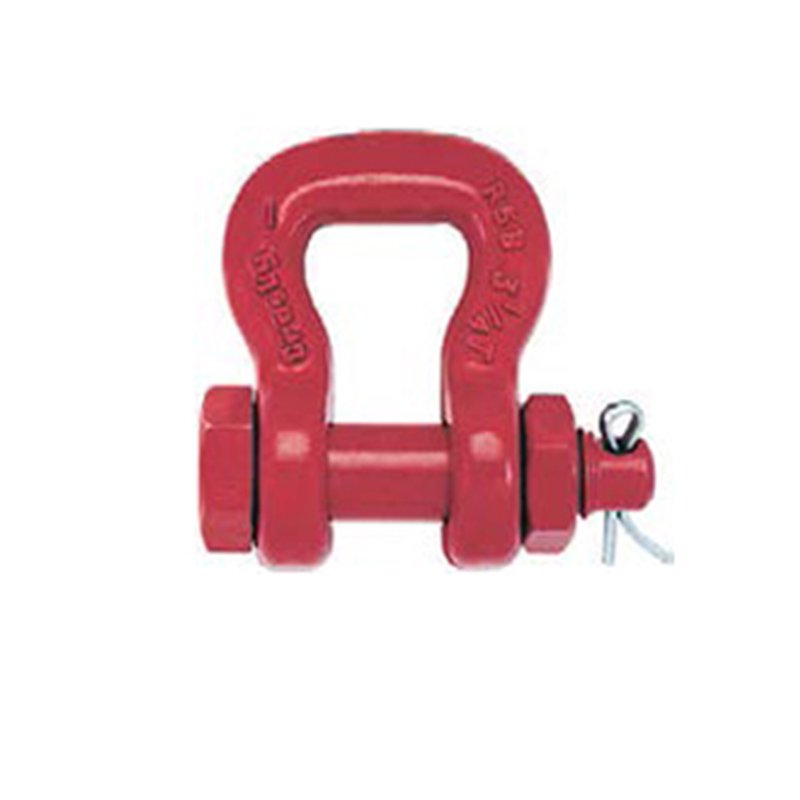

S-252 Bolt Typle Sling Shackles

• All alloy construction.

• Each shackle has a Product Identification Code (PIC) for material traceability along with a Working Load Limit and the name Crosby forged into it.

• Increased radius of bow gives wider sling bearing surface resulting in an increased area for load distribution, allows better load distribution on internal fibers.

Inquiry immediately
add to the cart

Product details:

• Increasing Synthetic Sling efficiency as compared to standard anchor and chain shackle bows and conventional hooks. This allows 100% of the sling's rated Working Load Limit to be achieved.

• Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements. Importantly, these shackles meet other critical performance requirements, including fatigue life, impact properties, and material traceability not addressed by ASME B30.26.

• Crosby Sling Saver hardware meets the requirements for minimum stock diameter or thickness, and effective contact width shown in the Recommended Standards Specification for Synthetic Polyester Round Slings by the Web Sling & Tie Down Association (WSTDA-RS1).

• Bolt (pin) has a larger diameter that provides better load distribution.

• Look for the Red Pin®... the mark of genuine Crosby quality

Workload	Part Number	Unit weight	Size(mm)
(t)*	Part Number	(kg)	A	B	C	D	E	F	G	H	J	K	L	M
3-1/4	1020485	0.64	26.9	14.7	35.1	19.1	38.1	11.2	86	93.5	28.4	38.1	19.1	68.5
6-1/2	1020496	1.09	31.8	19.1	44.5	22.4	47.8	12.7	105	108	33.3	46	25.4	86
8-3/4	1020507	1.86	35.1	22.4	57	25.4	71.5	14.2	140	120	38.1	53	28.4	106
12-1/2	1020518	3.63	41.1	28.4	82.5	31.8	77.5	19.1	161	149	47.8	66.5	35.1	143
20-1/2	1020529	7.67	54	35.1	114	38.1	133	22.4	240	183	57	79	44.5	191
35	1020540	15.9	63.5	44.5	140	51	161	28.4	292	236	76	106	57	233
50	1020551	26.1	76	54	165	57	196	31.8	349	264	86	121	70	279
